Accuracy What do "tolerance, accuracy, coefficient of variation, and precision" mean in volumetric measurements?
Graphic illustration of precision and accuracy

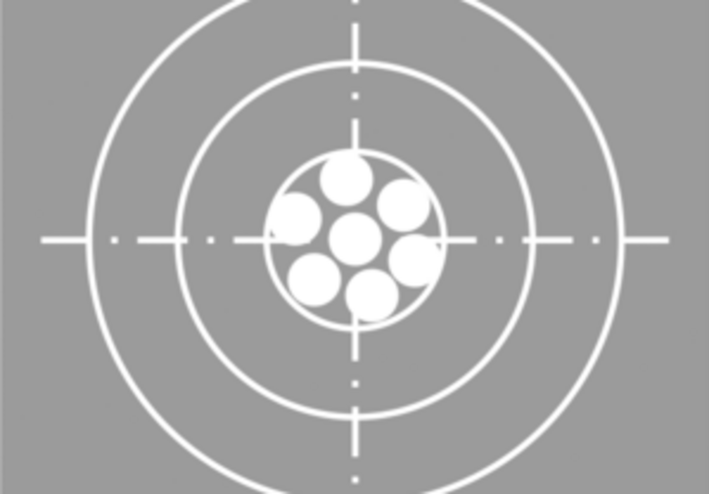

The dart board simulates the volume range around the centred nominal value, the white dots simulate the different measured values of a specified volume.
Good accuracy: All hits are near the centre, i.e., the nominal value.
Good precision: All hits are close together.
Result: The manufacturing process is well controlled by an accompanying quality assurance program. Minimal systematic deviations and a narrow variance in products. The permissible limits are not exceeded. There are no rejects.
Good accuracy: On average, the hits are evenly distributed around the centre.
Poor precision: No substantial errors, but hits widely scattered.
Result: All deviations are "equally probable". Instruments exceeding the permissible tolerance should be rejected.
Poor accuracy: Although all hits are close together, the centre (nominal value) is still missed.
Good precision: All hits are close together.
Result: Improperly controlled production, with systematic deviation. Instruments exceeding the permissible tolerance should be rejected.
Poor accuracy: The hits are far removed from the centre.
Poor precision: The hits are widely scattered.
Result: These volumetric instruments are of inferior Quality.
Calculations formulae
The accuracy of glass volumetric instruments is commonly defined by “Tolerance Limits”, whereas for liquid handling instruments the statistical terms “Accuracy [%]” and “Coefficient of Variation [%]” have been established.
Tolerance
The term “tolerance” (tol.) in the corresponding standards defines the maximum permissible deviation from the nominal value.
Accuracy
Accuracy (A) indicates the closeness of measured mean volume to the nominal value, i.e., systematic measurement deviation. Accuracy is defined as the difference between the measured mean volume (⊽) and the nominal value (Vnom.), related to the nominal value in percent.
Coefficient of Variation
Accuracy (A) indicates the closeness of measured mean volume to the nominal value, i.e., systematic measurement deviation. Accuracy is defined as the difference between the measured mean volume (⊽) and the nominal value (Vnom.), related to the nominal value in percent.
Partial volumes
(analogous to CVT %)
Generally, A and CV are based on the actual volume (Vact.). These data in percent must be converted to partial volumes (Vpart.). By contrast, there is no conversion for partial volumes if A and CV are stated in volume units (e.g. ml).
Tolerance from A and CV
To a good approximation, the tolerance, e.g. for the actual volume (Vact.), can be calculated from the accuracy and coefficient of variation.
Precision
If the variance in the individual measurement results about the mean volume ⊽ is given in units of volume, this relates to precision.
